邁思肯FIS-6300 MINIHawk讀碼器

產品說明

產品特點

技術參數

邁思肯FIS-6300 MINIHawk讀碼器介紹

流水線條碼自動識別讀碼器Microscan邁思肯掃描器歡迎來電咨詢Microscan邁思肯掃描器價格和型號。

邁思肯FIS-6300的2D固定式讀碼器采用先進的技術，可用于識別2D符號和線性條碼。針對高速讀碼，防靜電敏感應用和讀取具挑戰的直接零件標記（DPM)都有專用的讀碼器。

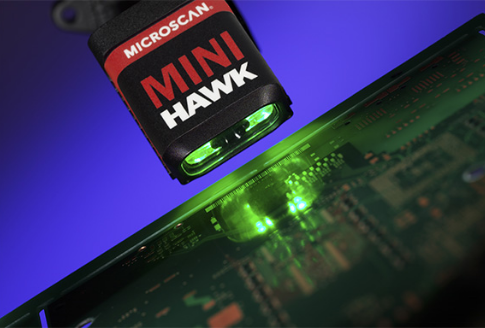

MINI HAWK FIS-6300是一款功能強大的微型影像式讀碼器，解決了所有行業中的眾多數據跟蹤和可追溯性需求。它提供了出色的條碼讀取算法和簡單的設置，適用于任何一維、二維或直接部件標記 (DPM) 應用。通過X-Mode技術確保實現可靠的解碼，該技術可以讀取損壞或難以辨認的符號，而無需進行配置或調整。

憑借簡單設置、功能強大的圖像處理能力和多種配置，MINI HAWK成為了任何條形碼或DPM應用的理想解決方案。

解碼速度和讀取范圍：視型號而異

X-Mode 解碼技術

自動對焦

可選的 USB 連接

可選的ESD安設計

MINI HAWK 3MP: 300萬像素分辨率的影像式讀碼器

MINI HAWK HR: 高分辨率影像式讀碼器

MINI HAWK HS: 高速影像式讀碼器

邁思肯microscan FIS-6300選型表

MINI Hawk 3MP Imagers
Part Number	Description
FIS-6300-2013G	MINI Hawk 3, Micro Density, Serial, 5VDC
FIS-6300-2014G	MINI Hawk 3, Standard Density, Serial, 5VDC
FIS-6300-2015G	MINI Hawk 3, Micro Density, USB + I/O, 5VDC
FIS-6300-2016G	MINI Hawk 3, Standard Density, USB + I/O, 5VDC
MINI Hawk High Resolution
FIS-6300-4007G	MINI Hawk High Res, Standard Density, Serial, 5VDC
FIS-6300-4008G	MINI Hawk High Res, High Density, Serial, 5VDC
FIS-6300-4009G	MINI Hawk High Res, Ultra High Density, Serial, 5VDC
FIS-6300-4010G	MINI Hawk High Res, Standard Density, USB+I/O, 5VDC
FIS-6300-4011G	MINI Hawk High Res, High Density, USB+I/O, 5VDC
FIS-6300-4012G	MINI Hawk High Res, Ultra High Density, USB+I/O, 5VDC
MINI Hawk High Speed Imagers
FIS-6300-5005G	MINI Hawk High Speed, Standard Density, Serial, 5VDC
FIS-6300-5006G	MINI Hawk High Speed, Ultra High Density, Serial, 5VDC
FIS-6300-5007G	MINI Hawk High Speed, Standard Density, USB+I/O, 5VDC
FIS-6300-5008G	MINI Hawk High Speed, Ultra High Density, USB+I/O, 5VDC
MINI Hawk ESD Safe
FIS-6300-1011G	MINI HAWK, Standard Density, ESD Safe, Serial, 5VDC
FIS-6300-1012G	MINI HAWK, High Density, ESD Safe, Serial, 5VDC
FIS-6300-1013G	MINI HAWK, Ultra High Density, ESD Safe, Serial, 5VDC
FIS-6300-1014G	MINI HAWK, Standard Density, ESD Safe, USB, 5VDC
FIS-6300-1015G	MINI HAWK, High Density, ESD Safe, USB, 5VDC
FIS-6300-1016G	MINI HAWK, Ultra High Density, ESD Safe, USB, 5VDC

邁思肯FIS-6300 MINIHawk讀碼器特性

解碼速度和讀取范圍：隨型號而定

X-Mode解碼技術

自動聚焦

可選USB連接

可選的ESD安設計

MINI Hawk ESD Safe model MINI HAWK 3MP: 300萬像素分辨率的影像式讀碼器
MINI HAWK HR: 高分辨率影像式讀碼器
MINI HAWK HS: 高速影像式讀碼器
MINI HAWK ESD Safe: ESD 安設計，特鎳鍍層和ESD-safe銘牌和線纜

GS1 Databar (RSS)2D symbologies PDF417Micro PDF 所有標準

邁思肯FIS-6300 MINIHawk讀碼器技術參數

邁思肯microscan FIS-6300配件表
Part Number	Description
FIS-0210-0001G	MS-Connect 210, Connectivity Box with Display
FIS-0210-0002G	MS-Connect 210, Connectivity Box
FIS-0210-0003G	MS-Connect 210, Connectivity Box with Display and Ethernet
FIS-0210-0004G	MS-Connect 210, Connectivity Box with Ethernet
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
61-000127-02	Cable, MS-2 to MS-Connect 210, 6 ft
FIS-0001-0035G	IC-332, Connects MS-2 to IB-131
99-000018-01	IB-131, Interface Box
98-000039-02	Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer
61-300026-03	Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft
61-100029-03	Cable, IB-131 Daisy Chain, 1 ft
20-500013-01	DeviceNet Protocol Box
61-000011-02	Cable, MS-820 to IB-131 (also use for MS-3, 4, 9, 710 and MINI Extension)
61-000151-01	Cable, MINI USB, I/O Breakout, Flying Leads, 3ft
98-000098-01	Kit, Quadrus MINI Diffuser
Power Supply
97-100004-15	Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332)
Mounting and Connectors
98-000048-01	Mounting Arm/Adapter Kit, 4 inch
98-000054-01	Kit, Mounting Stand Base Plate
98-000053-01	Extension Kit, 4 inch
98-000053-02	Mounting Arm Extension Kit, 3 inch
98-000060-01	Kit, Bracket, Side Mount
98-000059-01	Kit, Bracket, Angle Mount
98-000057-01	Kit, Bracket, Through Hole Mount
98-000088-01	Kit, Right Angle Mirror
20-610024-01	Trigger Connector, 4-pin Plug (screw terminal and field wireable)
20-610020-01	Power Connector, 3-pin Socket (screw terminal and field wireable)
Package Detector/Sensor
99-000017-01	Photo Sensor, Visible, NPN, DARK ON
99-000017-02	Photo Sensor, Visible, NPN, LIGHT ON
99-000019-01	Photo Sensor, Visible, NPN, Light On, 5VDC
Software/Manuals
37-000001-01	TOOLS CD, User’s Manuals, ESP Software
37-000003-01	TOOLS CD, EZ Trax Software
